Automatic Bottle Management
Bottles that are expired, empty or due for replacement are handled automatically by the system.
Overview

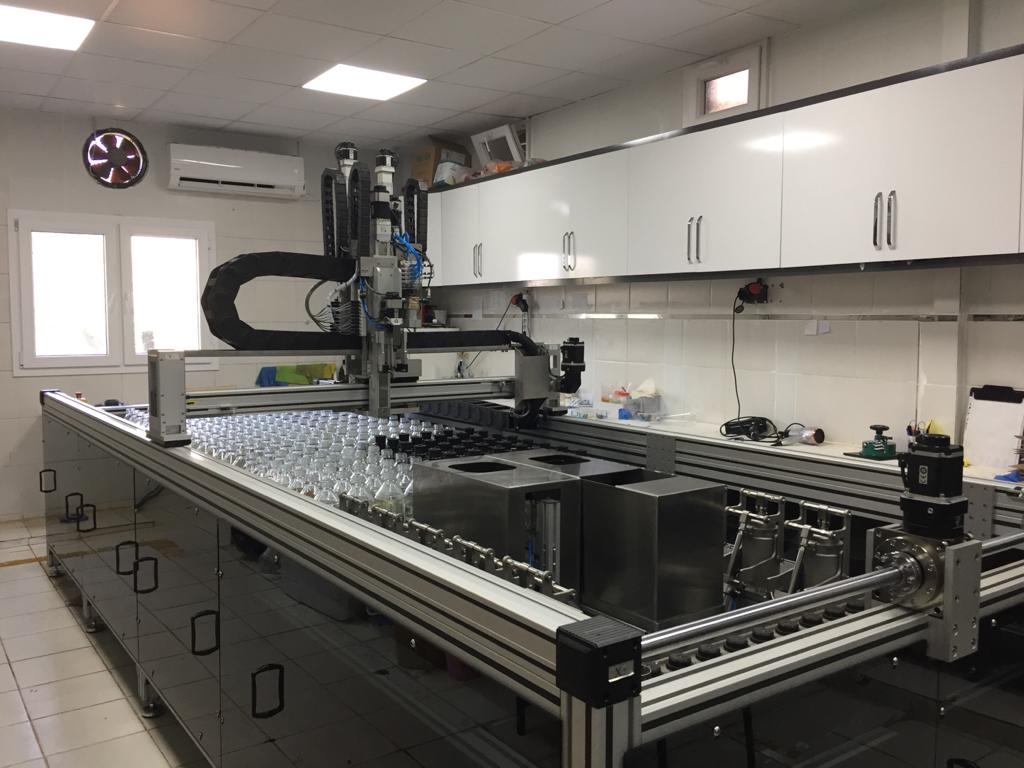

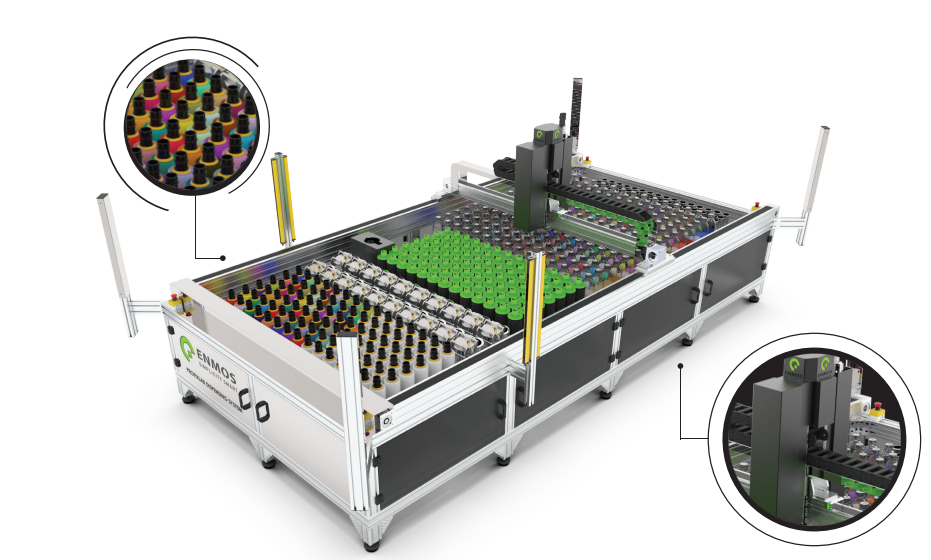

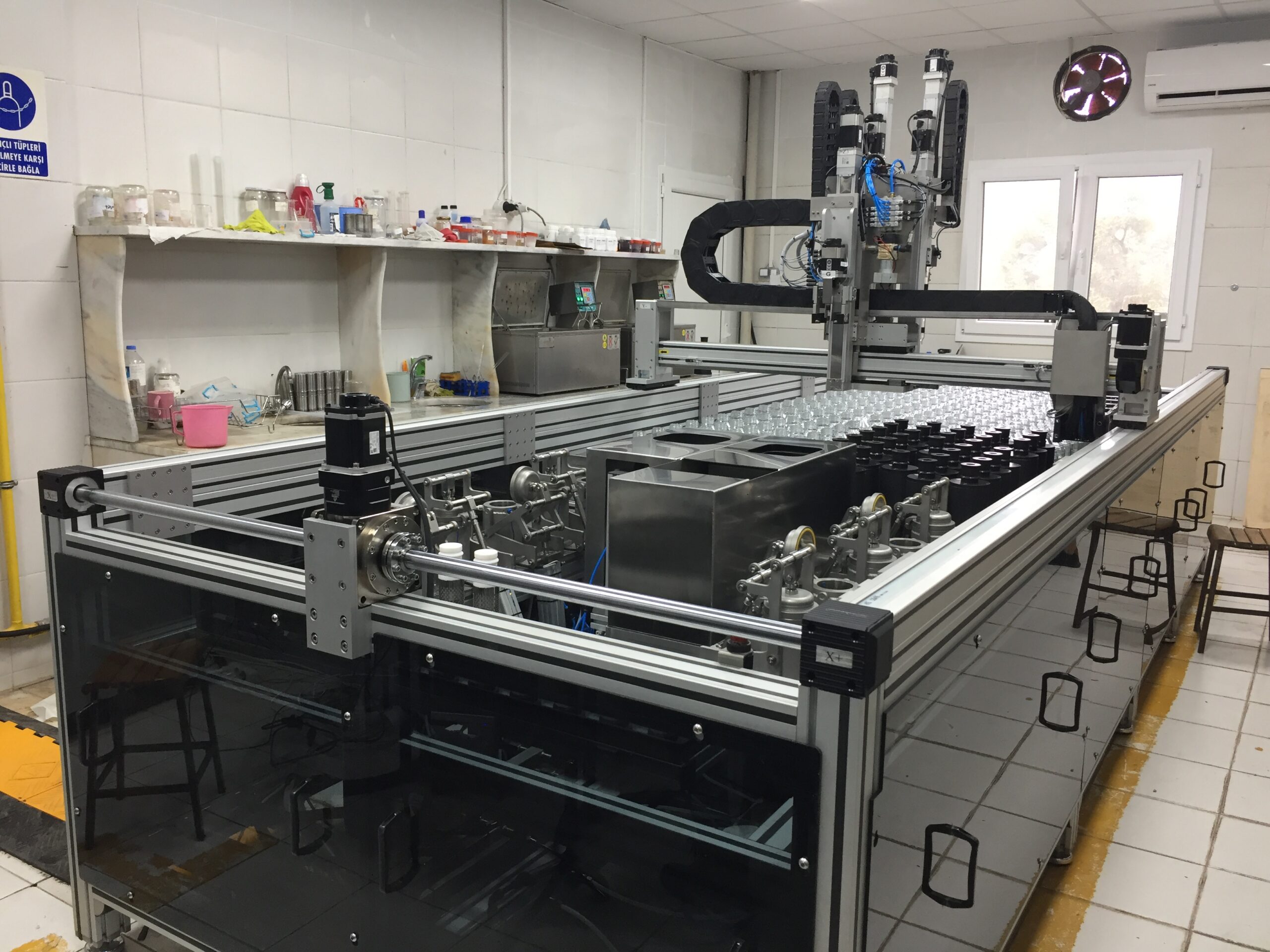

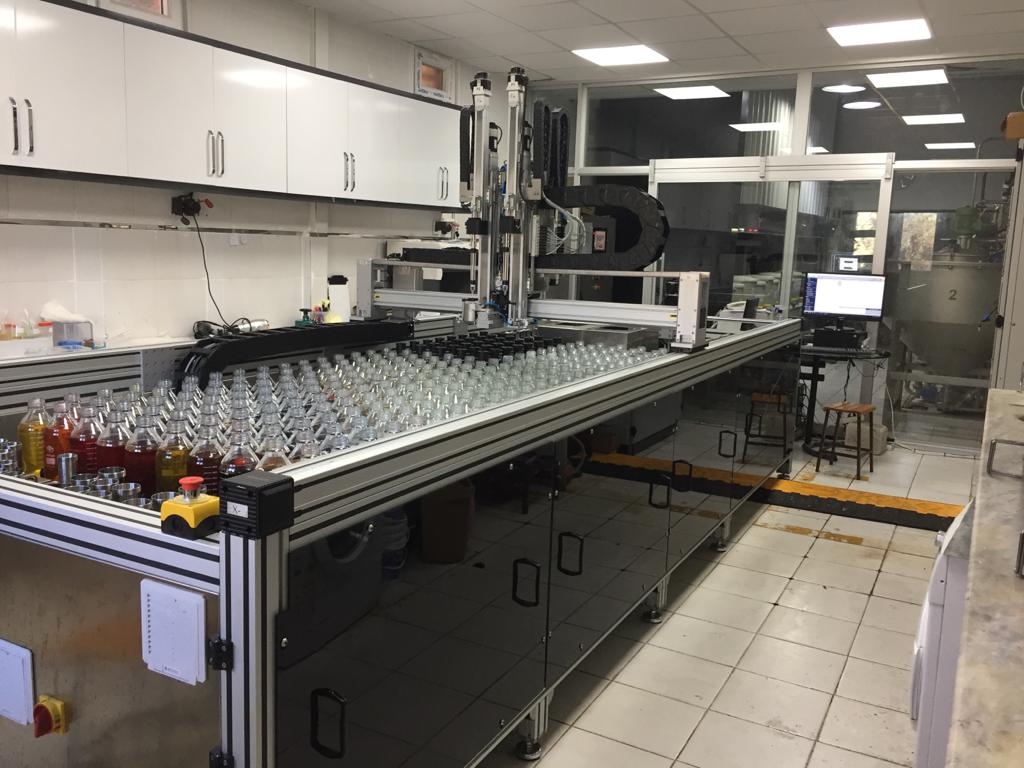

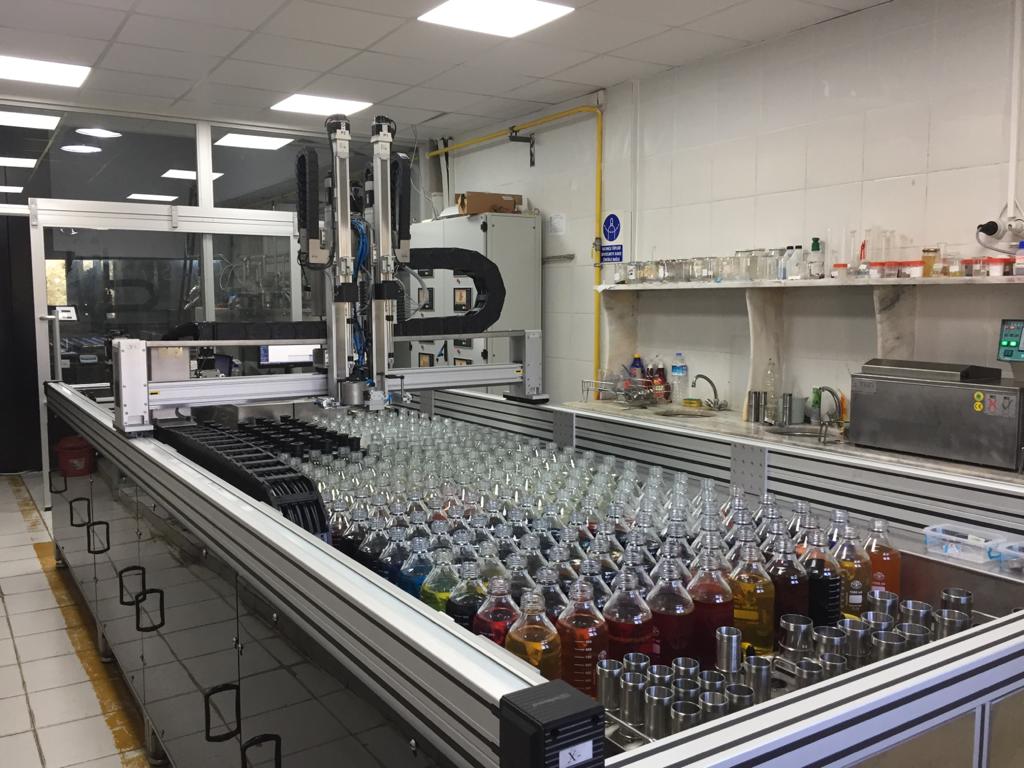

Profix LAB Advance is an advanced system that automates the management, washing and refilling of solution bottles in the laboratory dosing process. Expired bottles are collected automatically, carried to the washing unit and refilled after washing.
The system weighs the powder dye, adds water and mixes to prepare a new solution automatically. When bottles run empty or are due for replacement, they are handled automatically within the system without extra intervention.
Operating Process
Transfer to the Washing Unit
The system automatically picks up the relevant bottles and carries them to the washing unit to begin preparation.
Powder Dye Weighing
Once washing is complete, the system weighs the powder dye and moves on to preparing the new solution.
Solution Preparation
Water is added to the powder dye, mixing is performed, and the new solution is made ready for use automatically.
Highlights
Automatic Solution Preparation
Automates powder dye weighing, water addition and mixing, making laboratory preparation more controlled.

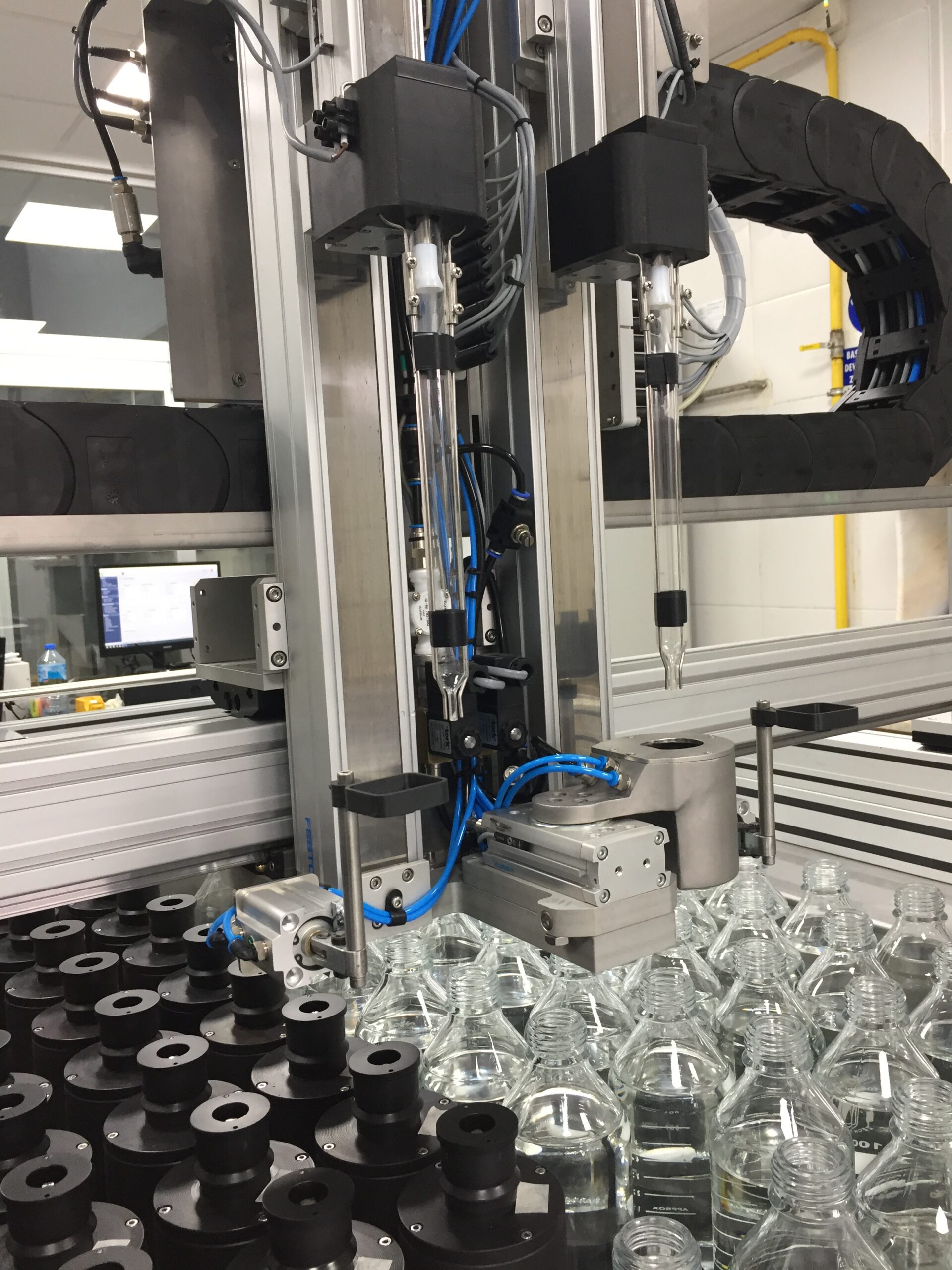

Glass Syringe Dosing
The glass syringe doses the required colours from the liquid solution bottles into sample tubes with high accuracy.
High Accuracy
Its volumetric dosing structure performs recipe weighing with high accuracy, unaffected by vibration or environmental changes.
Technical Structure
| Product Name | Profix LAB Advance |
|---|---|
| Category | Laboratory dosing and automatic solution preparation system |
| Bottle Capacity | Can be implemented with different bottle capacity options |
| Bottle Management | Automatic handling of bottles that are expired, empty or due for replacement |
| Washing Process | Automatic pick-up of bottles and transfer to the washing unit |
| Solution Preparation | Automatic new solution preparation with powder dye weighing, water addition and mixing |
| Dosing Structure | Volumetric dosing with a glass syringe |
| Dosing Area | Dosing the required colours from liquid solution bottles into sample tubes |
| Precision | High-precision recipe weighing unaffected by vibration or environmental changes |
Usage Advantages
- Automatically manages bottles that have passed their shelf life
- Automatically transfers bottles to the washing unit
- Automates powder dye weighing and solution preparation after washing
- Makes the new solution ready for use through water addition and mixing steps
- Handles empty or due-for-replacement bottles without extra intervention
- Performs high-precision volumetric dosing with a glass syringe
- Doses the required colours into sample tubes in the required amounts
- Supports precise recipe weighing without being affected by vibration or environmental changes
