High Accuracy
Detects the magnet attached to the fabric end as it passes the sensor, producing a reliable fabric end signal.
Overview

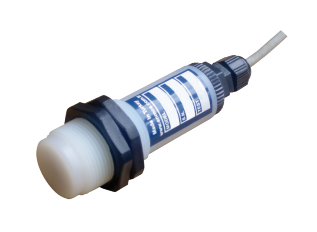

UB 30/40 is a seam detection sensor designed to locate the fabric end accurately on fabric dyeing machines. The system works on the principle that a magnet attached to the fabric end generates a signal as it passes the sensor.
Its high-accuracy detection provides reliable support, particularly in processes that run on a cycle time basis. Its ability to maintain detection at high temperatures makes the sensor well suited to fabric dyeing applications.
Highlights
High Temperature Support
Maintains its detection performance at high temperatures, providing stable use in fabric dyeing processes.
Cycle Time Compatible
Supports cycle-time based processes without error, helping operational control proceed more reliably.
Technical Structure
| Product Name | Fabric Seam Detection Sensor |
|---|---|
| Series / Model | UB 30/40 |
| Sensor Type | Seam detection sensor |
| Application Area | Fabric dyeing machines |
| Operating Principle | The magnet attached to the fabric end signals as it passes the sensor |
| Detection Structure | High-accuracy magnetic detection system |
| Temperature Resistance | Maintains detection performance at high temperatures |
| Process Support | Supports processes operating on a cycle time basis |
Usage Advantages
- Used to detect the fabric end on fabric dyeing machines
- Provides a high-accuracy detection structure
- Generates a reliable signal via a magnet attached to the fabric end
- Maintains detection performance at high temperatures
- Supports processes operating on a cycle time basis
- Contributes to fabric movement tracking and process control
