Retrieving the Recipe Information
Dye code and quantity data from the Focus central monitoring software are transferred to the system.
Overview

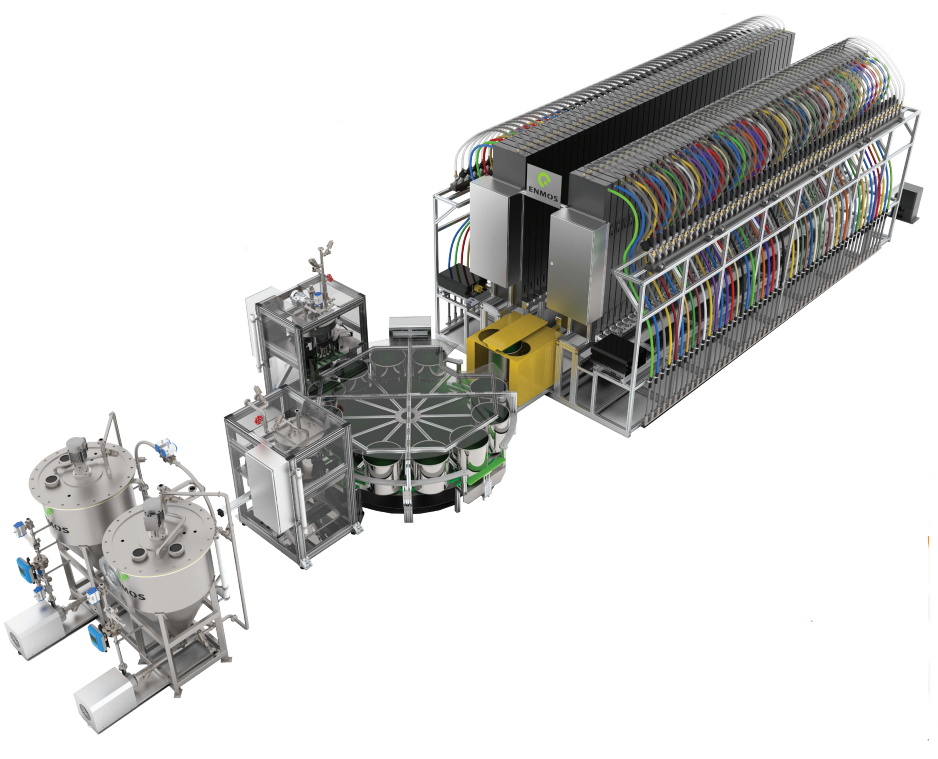

Profix FW is a fully automatic powder dye weighing, dissolving and distribution system developed for textile dyehouses. It weighs the correct dyestuff with high accuracy according to the dye code and amount in the recipe and delivers it to the dyeing machine's auxiliary dosing tank.
The system is designed around a contactless operating principle. Its anodised metal main body and stainless steel components provide high durability and long-term reliable performance in abrasive dyehouse environments.
Recipe data taken from the Focus central monitoring software is transferred to the dissolving unit via integrated 12.1 inch touchscreen computers. The sliding scale and bucket system automatically performs the weighing cycles needed until the recipe is complete.

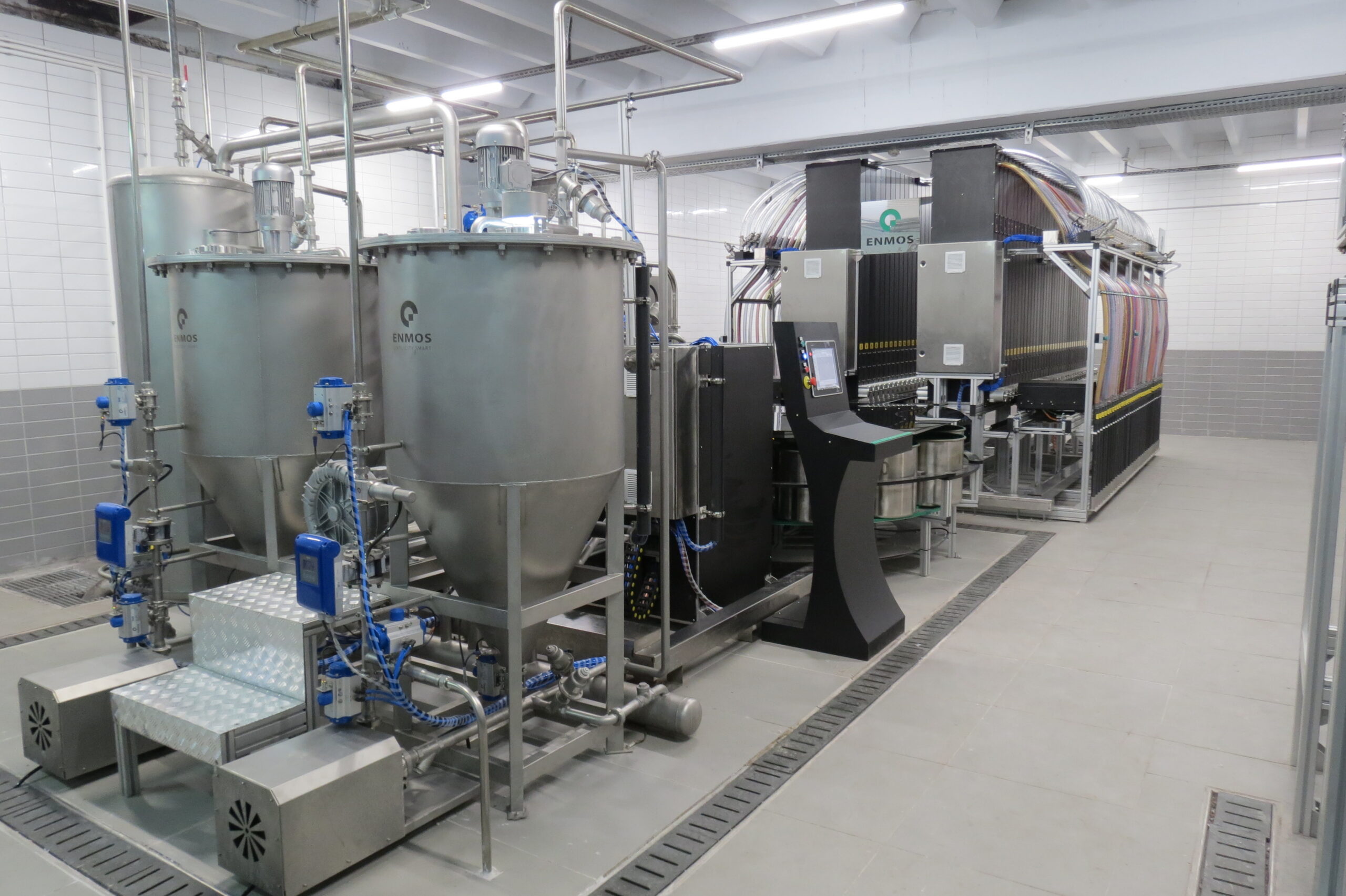

The weighed dyestuff is carried to the vacuum unit, transferred to the dissolving tank by blower and fully dissolved by the mixer system. The prepared dye solution is sent to the dyeing machines by pumps and the single line distribution system.
Operating Process
02
Precise Weighing

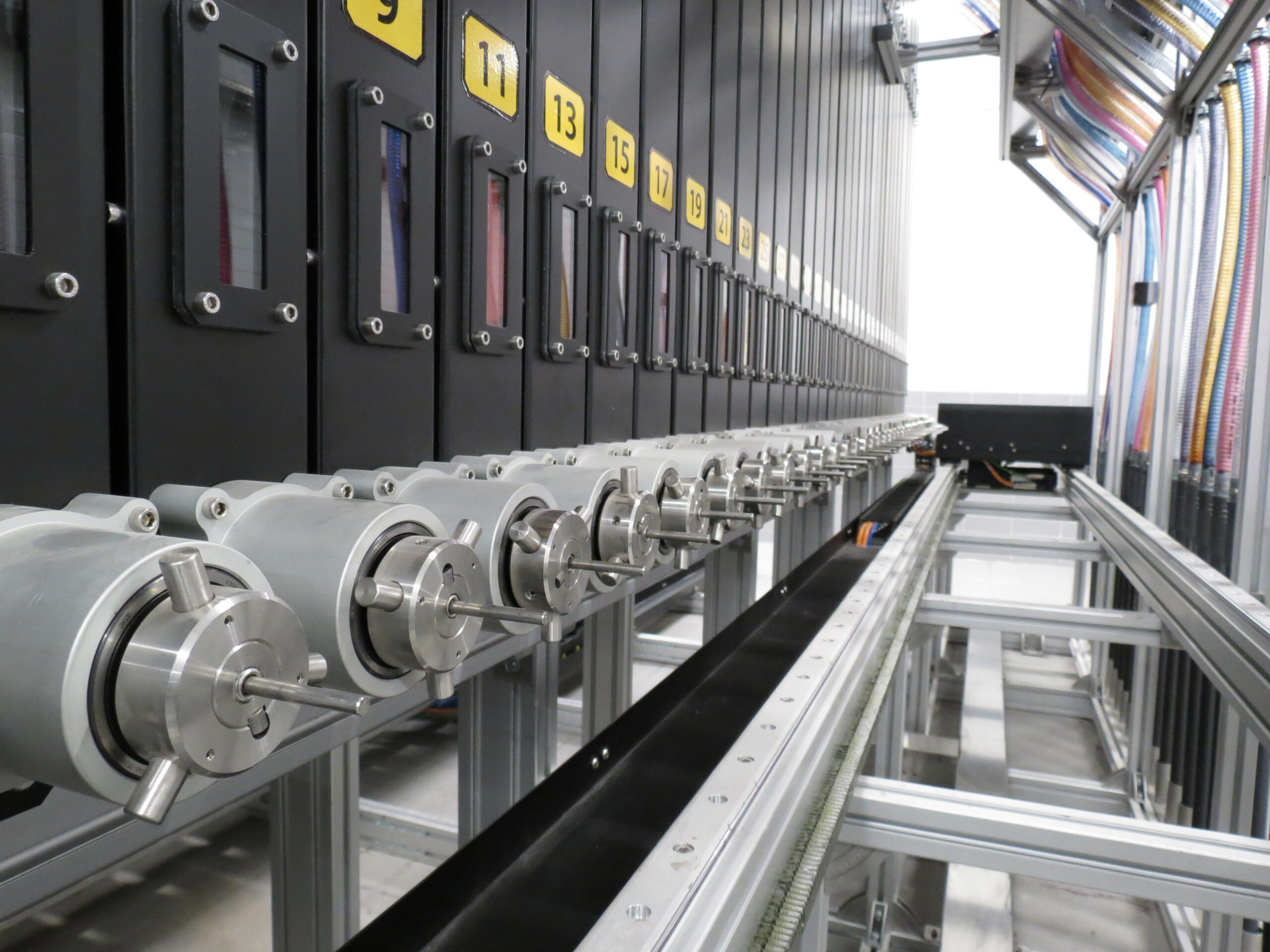

The servo-driven screw dosing system transfers the required powder dye precisely into the weighing bucket.
03
Vacuum Transfer

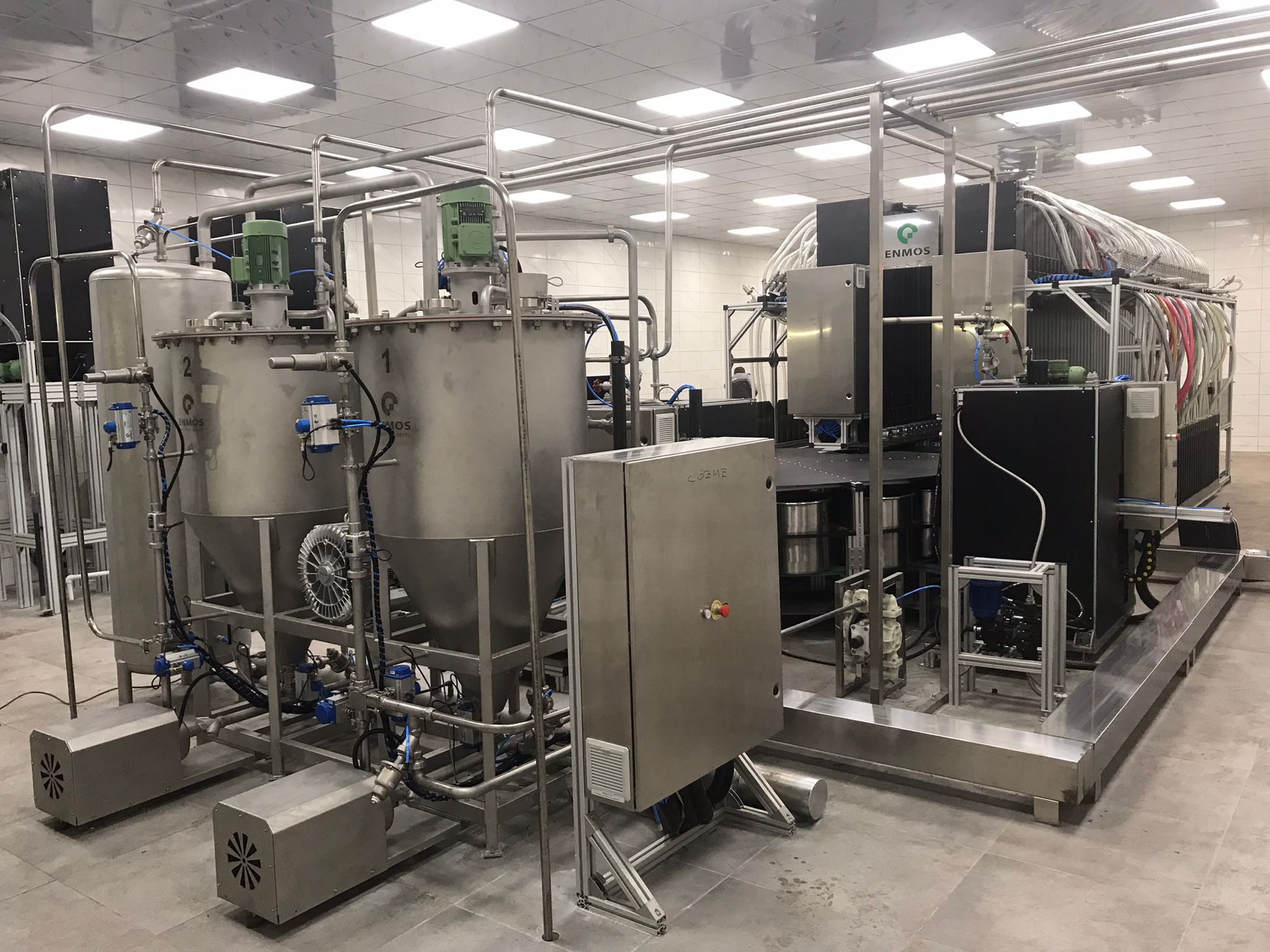

The filled bucket is carried to the vacuum unit by the rotary carrier ring and transferred to the dye dissolving tank.
04

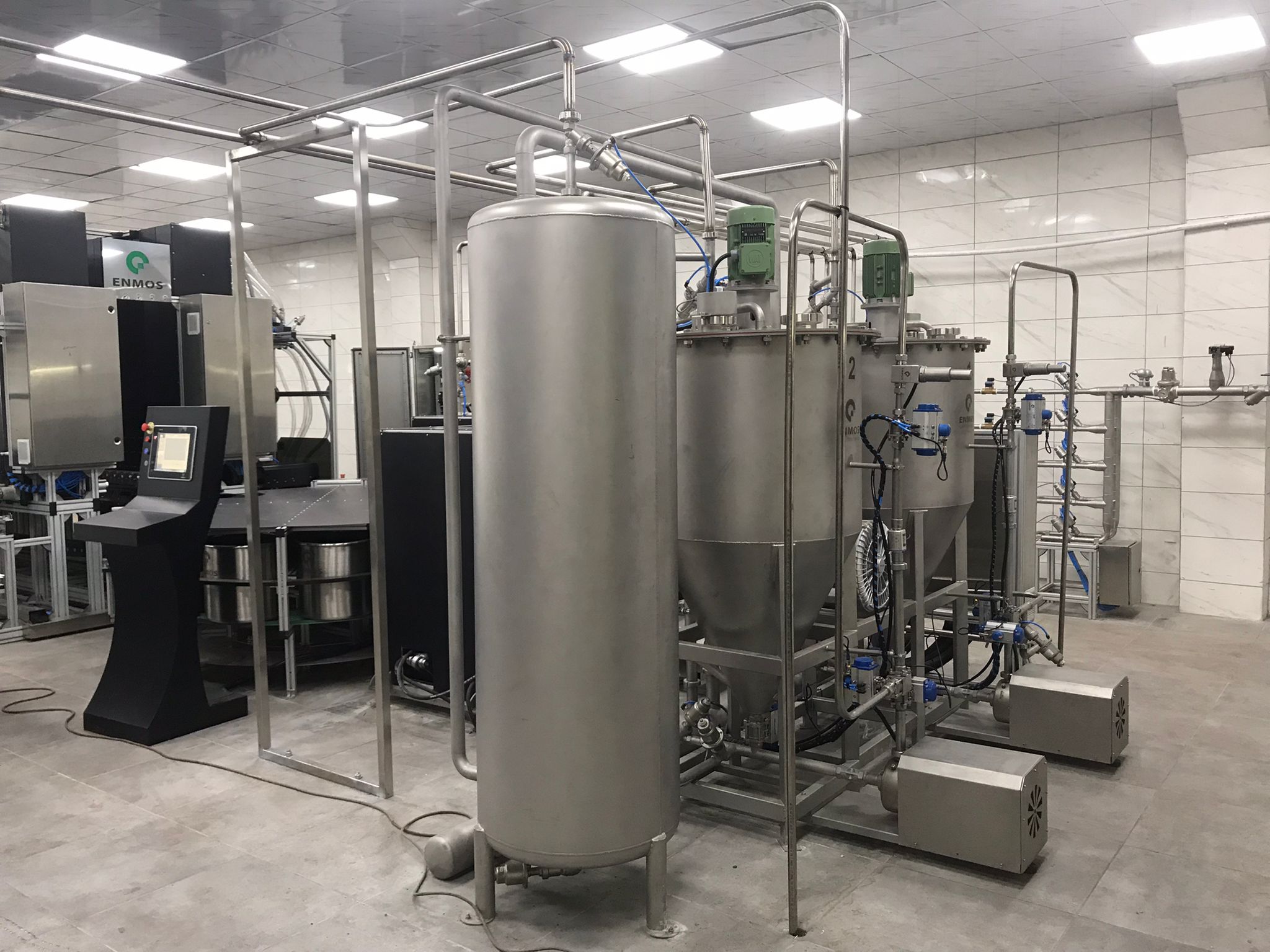

Dissolving and Distribution
The dye is fully dissolved and sent to the relevant dyeing machine over the single line distribution system.
Highlights
Fully Automatic Process
Automates powder dye storage, weighing, bucket transfer, dissolving, washing, drying and distribution with minimal operator intervention.
Precise Servo Weighing
Screw dosing systems and adjustable speed-controlled servo motors deliver high-accuracy weighing across different recipe volumes.
Low Water Consumption
The vacuum transfer and bucket washing structure reduces the need for a separate washing unit and keeps total water consumption to a minimum.
System Structure
Modular Powder Dye Storage

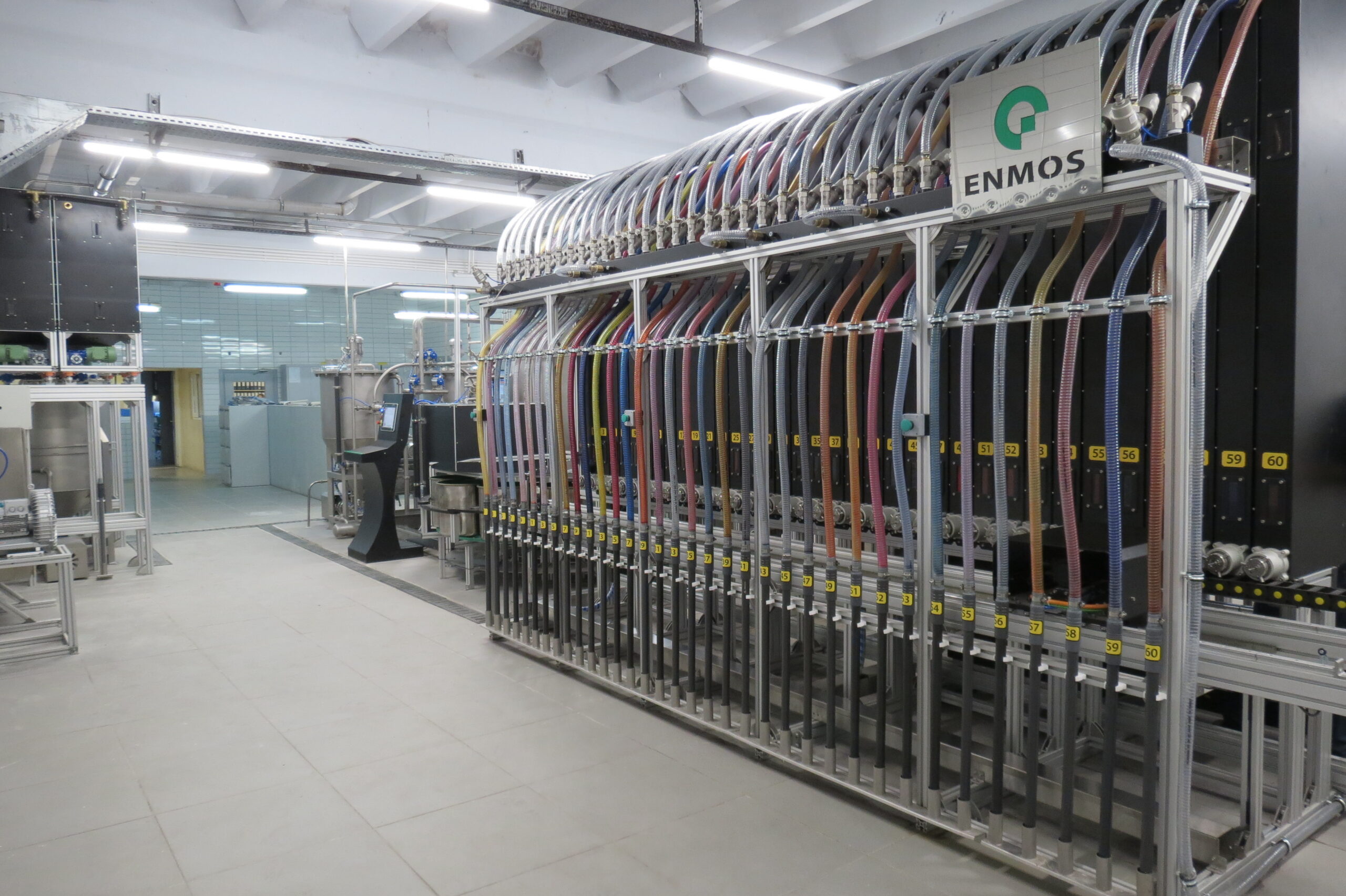

Storage units of 100 litres with approximately 60 kg loading capacity can be arranged as independent blocks in single or double rows.
Expansion Up to 10 Blocks
The storage system can be expanded to 10 silo blocks according to the plant's dye variety and capacity needs.

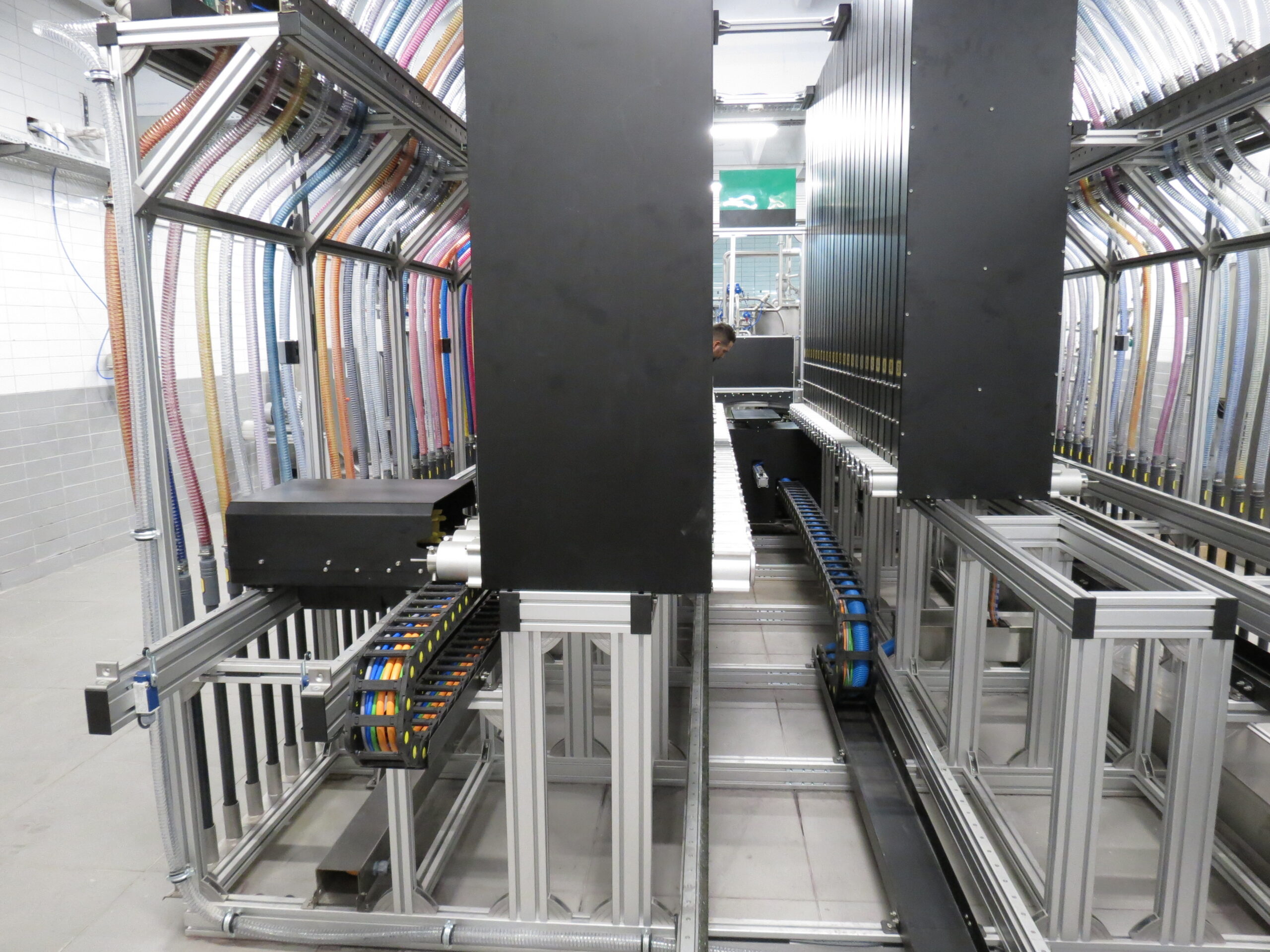

Sliding Weighing System
The precision scale and weighing bucket move on a sliding rail system in front of the storage unit.
12 Weighing Buckets
The 12 weighing buckets, with a stainless steel body and Teflon coated inner surface, are reused across different weighing cycles.

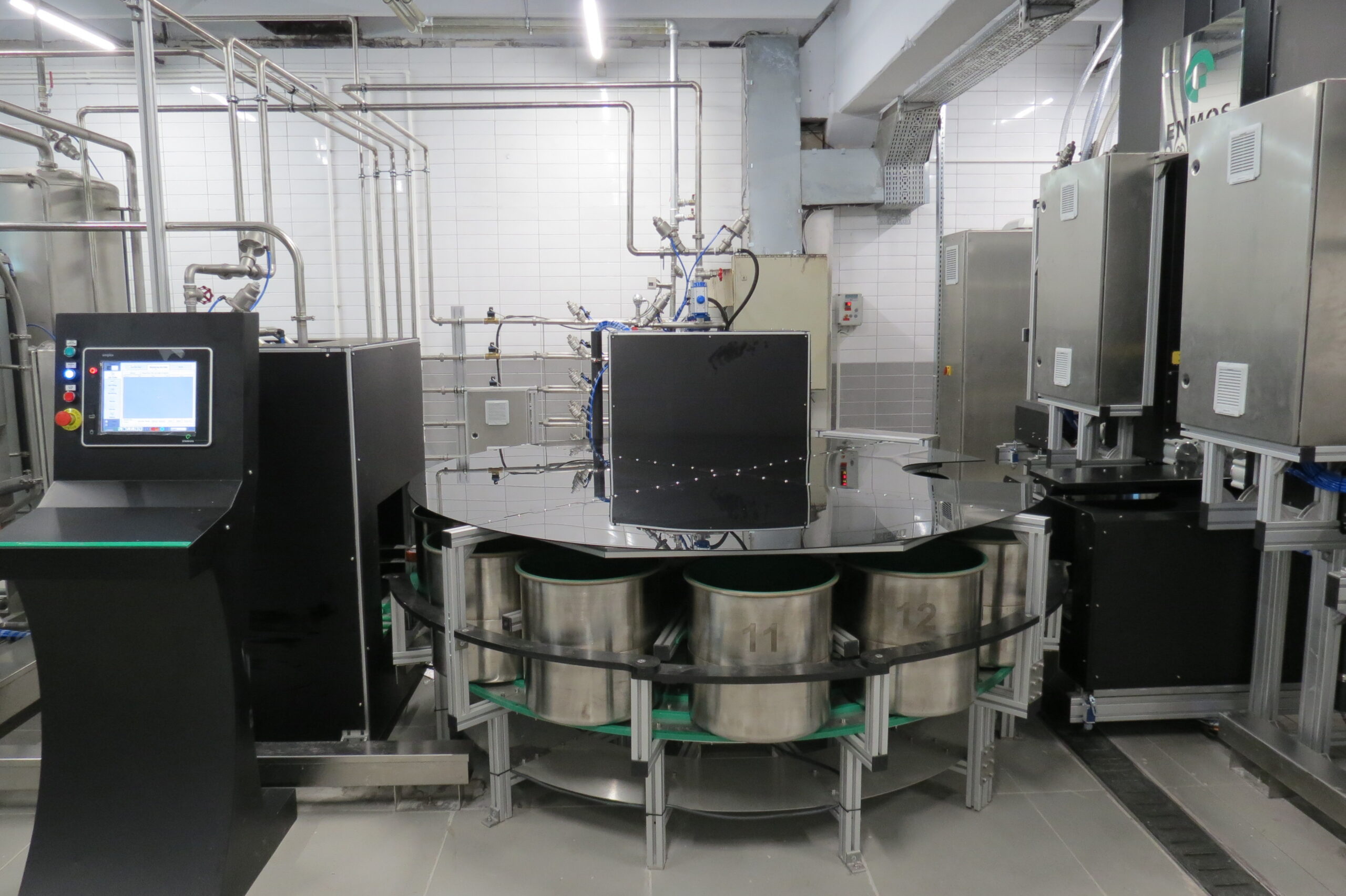

Rotary Bucket Carrier Ring
Buckets that have finished weighing are carried automatically to the vacuum transfer unit by the rotary carrier ring.
Automatic Bucket Washing
After each transfer the bucket is washed with water, dried with air and returned to the system for the next weighing.
AG and Standard Vacuum Units
The AG or standard vacuum unit engages automatically according to recipe size, ensuring correct dyestuff transfer.
Single Line Distribution
The dye solution fully prepared in the dissolving tank is distributed to the dyeing machines over a single line by pumps.
Basic Capacity Information
Volume of each powder dye storage unit
Approximate dye capacity of one storage unit
Teflon coated weighing bucket
Standard dissolving tank capacity
Maximum expandable silo block structure
Integrated touchscreen computer
Sequential layout option for storage blocks
Automatic distribution to dyeing machines
Technical Structure
| Product Name | Profix FW |
|---|---|
| Category | Fully automatic powder dye weighing, dissolving and distribution system |
| Application Area | Powder dyestuff automation in textile dyehouses |
| Operating Principle | Contactless, recipe-controlled and fully automatic operation |
| Main Body | Anodised metal body and stainless steel system components |
| Storage Unit | Independent blocks of 100 litres each, with approximately 60 kg powder dye loading capacity |
| Block Layout | Single-row or double-row layout |
| Maximum Expansion | Up to 10 silo blocks |
| Dosing System | Screw dosing with adjustable speed-controlled servo motors |
| Weighing Structure | A precision weighing scale and bucket moving on a sliding rail |
| Weighing Buckets | 12 buckets with a stainless steel body and Teflon coated inner surface |
| Bucket Transfer | Automatic transfer to the vacuum unit via the rotary bucket carrier ring |
| Bucket Cleaning | Automatic washing with water and drying with air |
| Dyestuff Transfer | Blower assisted vacuum transfer system |
| Vacuum Unit | AG or standard vacuum unit engaged automatically according to recipe volume |
| Dissolving Tank | Standard 380 litre capacity |
| Dissolving Structure | Homogeneous and complete dissolving via the mixer |
| Distribution | Delivery to dyeing machines via pumps and the single line distribution system |
| Control System | Workstation panels connected to a single electrical and control cabinet |
| Control Screen | Integrated 12.1 inch touchscreen computers |
| Software Integration | Automatic recipe transfer from Focus central monitoring software |
| Safety | System structure validated by performance and safety testing |
