Continuous Circulation
Dissolved salt and soda are kept continuously moving inside the pipelines, reducing the risk of sedimentation and crystallisation.
Overview
Profix RS is an advanced ring system that manages salt and soda dosing, distribution and circulation together. Like Profix S, it distributes the required amounts of solution to the machines automatically; at the same time it keeps the solution in the lines continuously circulating.
Helps prevent crystallisation and sedimentation in pipelines and storage. It delivers significant time savings in dissolving and distribution, particularly in plants with longer salt-soda lines and larger salt-soda stocks.
All work orders can be tracked online and reported thanks to the large touchscreen and user-friendly software. This helps reduce operator errors and labour costs.

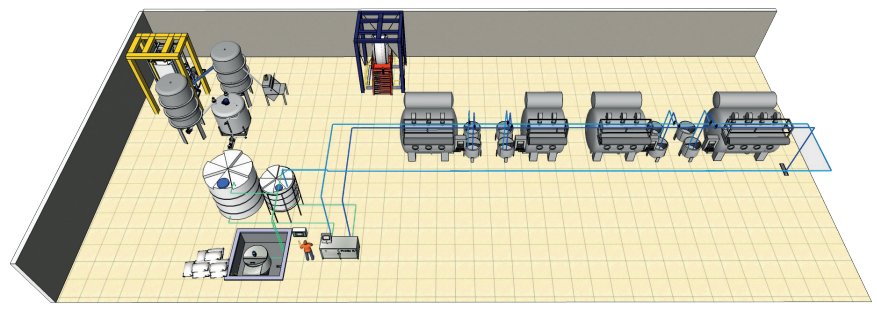

Ring System Structure
Two Separate Pipelines
Two separate pipelines must be used for salt and soda distribution in the ring system layout.
Instant Response to Machine Demand
When any dyeing machine requests salt or soda, the solution already in the pipeline begins filling the addition tank on command.
Filling Up to the Valve
The system continues filling until the relevant machine valve opens, keeping the solution delivery process ready.
Long Line Advantage
Minimises time lost to transfer duration in plants with long-distance lines.
High Stock Availability
Delivers high production capacity and fast distribution in plants that use large amounts of salt and soda.
Highlights
Preventing Crystallization
Keeps the solution continuously moving in the lines and in storage, helping prevent crystallisation and sedimentation.
Significant Time Saving
Reduces time lost to dissolving, waiting and transfer in plants that use salt and soda.
Online Tracking and Reporting
Work orders can be tracked online and reports produced via the large touchscreen and user-friendly software.
Technical Structure
| Product Name | Profix RS |
|---|---|
| Category | Salt & soda dosing, distribution and circulation system |
| System Type | Ring system |
| Core Function | Automatically distributing prepared solutions and continuously circulating the solution in the lines |
| Profix S Relationship | An enhanced version of Profix S that can circulate the solution in the lines |
| Pipeline Structure | Two separate pipelines for salt and soda distribution |
| Circulation Structure | Dissolved salt and soda circulate continuously through the pipelines |
| Machine Request | When the dyeing machine requests salt or soda, the solution moving through the line fills the addition tank on command |
| Application Area | Plants with long-distance lines and large salt-soda stocks |
| Monitoring and Reporting | Online work order tracking and reporting with a large touchscreen and user-friendly software |
Usage Advantages
- Keeps salt and soda solutions circulating continuously in the lines
- Reduces crystallisation in pipelines and storage
- Supports process continuity by helping prevent sedimentation
- Automatically distributes the required amount of solution to the machines
- Minimises time loss on long salt-soda lines
- Delivers strong advantages in plants with large salt-soda stocks
- Saves time on dissolving and distribution operations
- Work orders can be tracked online on the large touchscreen
- Makes production and consumption processes traceable through its reporting structure
- Helps reduce operator errors, additional costs and labour costs
